Alloy 2024 was registered in the United States in 1954. The strength of 2024 alloy is higher than that of 7075 alloy. No matter in the hot state or annealing and new quenching state, the formability is better. 2024 aluminum alloy requires strict heat treatment process, so the heat treatment strengthening effect is significant.

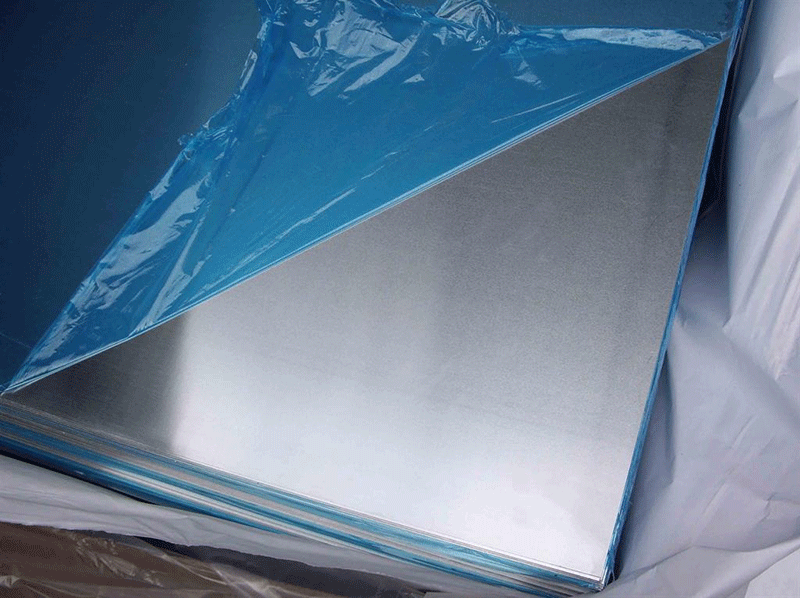

2024 aluminum plate sheet produced by Henan Chalco includes nine tempers of O, T3, T4, T6, T72, T81, t361, etc,
The use of pure aluminum coating can effectively protect the performance of aluminum plate, improve the corrosion resistance of
alclad 2024 aluminum plate sheet, and adopt special technology during welding to effectively avoid the generation of cracks during welding. As
2024 aluminum plate sheet is a typical hard aluminum alloy of Al Cu Mg alloy, with reasonable composition and good comprehensive performance, it is widely used in aircraft structure, rivets, truck hub, propeller components and other structural parts.
.gif)
Performance characteristics of
alclad 2024 aluminum plate sheet produced by Chalco:
A: The tensile strength is large, and the natural effect of quenching is long.
B: Good corrosion performance and anti fatigue effect.
C: The aluminum plate has good shape, flat layout, no oil spots, bumps, scratches and roller marks.
D: It has good room temperature strength and good heat resistance. When the content of Cu is low, the decomposition tendency of low concentration solid solution is small, which improves the heat resistance.
|
Alloy |
Temper |
Thickness（mm） |
Width（mm） |
Length（mm） |
Typical usage |
|
2024 |
O、T3、T4、T6、T72、T81、T361、T351、T861、T3511、T8611 |
0.3-600 |
800-2600 |
500-16000 |
Propeller structure, aircraft frame, etc |
