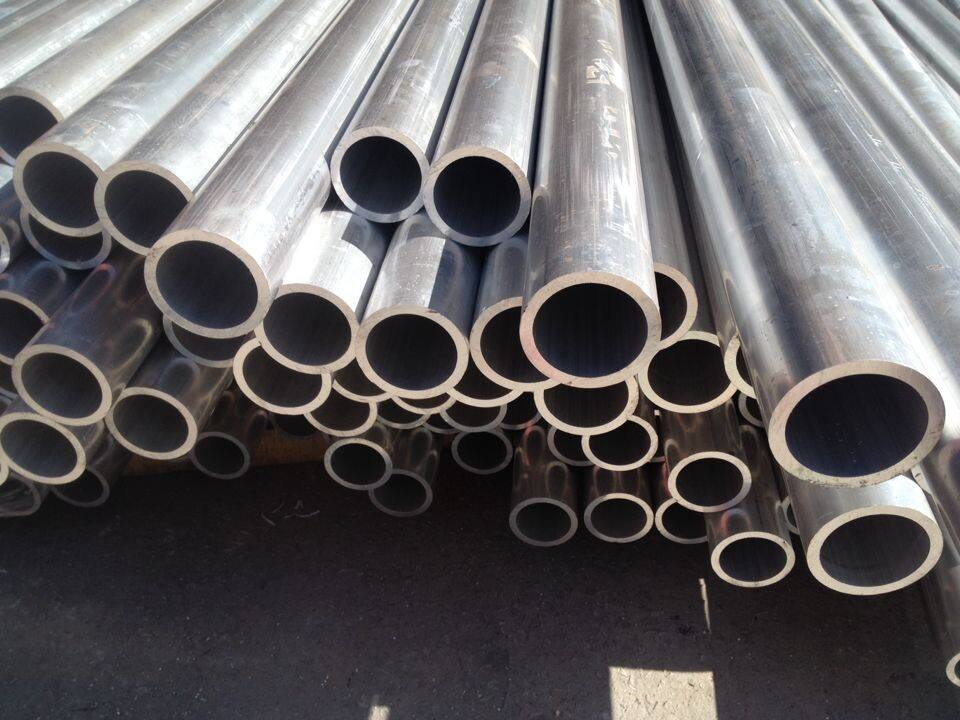

7A09 aircraft aluminum tubing

7A09 belongs to Al Zn mg Cu system of super hard aluminum, which has been used in aircraft manufacturing since the late 1940s, and 7A09 aircraft aluminum tubing is still widely used in aviation industry. It is characterized by good plasticity after solid solution treatment, excellent heat treatment effect, high strength below 150 C and excellent low temperature strength, poor weldability, stress corrosion cracking tendency, and need to be protected by aluminum cladding or other protective treatment. The static fatigue, notch sensitivity and stress corrosion resistance of the plate are better than 7A04.





Alloy	7A09 aircraft aluminum tubing
Temper	T6、T651
Extrusion pipe	ODΦ20mm~300mm
Seamless pipe	ODΦ20mm~600mm
Supersize tube	Customized
Typical product	Make high-end aluminum alloy bicycle frame, etc


CHEMICAL COMPOSITION

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zr

Others

AL

Old

New

0.50

0.50

1.4-2.0

0.2-0.6

1.8-2.8

0.1-0.25

5.0-7.0

0.10

0.08-0.15

Each

Total

7A09

LC9

0.05

0.15

Remain


MECHANICAL PROPERTIES

Alloy temper	Tensile strength Rm/Mpa	Yield strength Rp0.2/Mpa	Elongation/%	Hardness/ HBWα
7A09-T6	530	400	5	150



PHYSICAL PROPERTY

Alloy Temper	Coefficient of thermal expansion (20-100℃) μm/m·k Rm/Mpa	Melting point range (℃) Rp0.2/Mpa	Conductivity 20℃(68℉) (%IACS)	Resistivity 20℃(68℉) Ωmm2/m	Density (20℃)(g/cm3) Ωmm2/m
7A09-T6	23.6	475-635	33	0.0515	2.8
