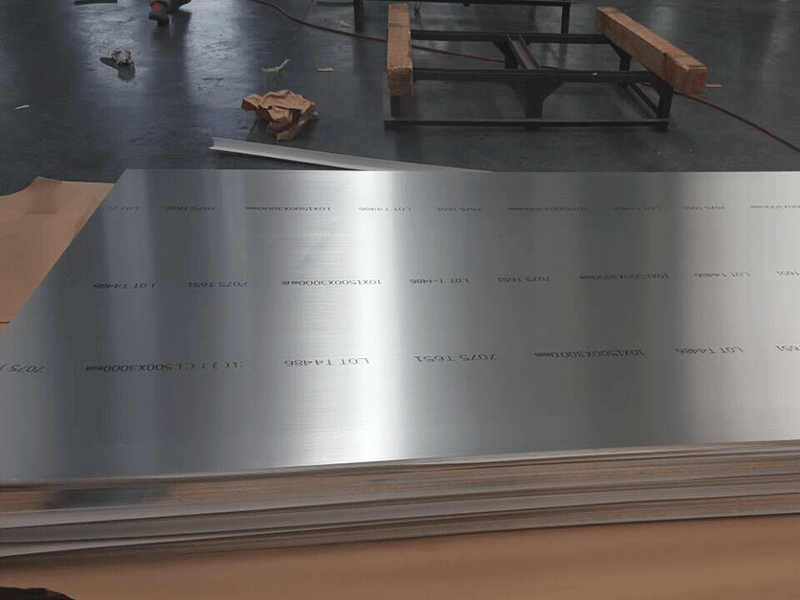

7075 T6 aluminum plate is an aluminum alloy with zinc as the alloy element. Aluminum plate with good fatigue strength and processability, but not weldable. Compared with other alloys, they are less resistant to corrosion.
Common: 7075-T6
Basic properties
The specific gravity of 7075 is 2.80 (0.098 lb / cubic inch). 7075 ingredients:
Silicon Si:0.40
Iron Fe: 0.50
Copper: 1.2-2.0
Mn Mn:0.30
Mg: 2.1-2.9
Cr: 0.18-0.28
Zinc: 5.1-6.1
Titanium Ti:0.20
Aluminum al: margin
Single: 0.05 total: 0.15
Main uses of
7075 T6 aluminum plate
Aviation fixtures, trucks, tower buildings, ships, pipelines and other applications requiring strength, weldability and corrosion resistance. For example: aircraft parts, gears and shafts, fuse parts, instrument shafts and gears, missile parts, jump valve parts, turbines, keys, aircraft, aviation and national defense applications.
Mechanical properties of
7075 T6 aluminum plate
The mechanical properties of 7075 largely depend on the tempered material.
7075-T6, tensile strength 74000-78000 psi (510-538 MPa), yield strength 63000-69000 psi (434-476 MPa), elongation 5-8%.
