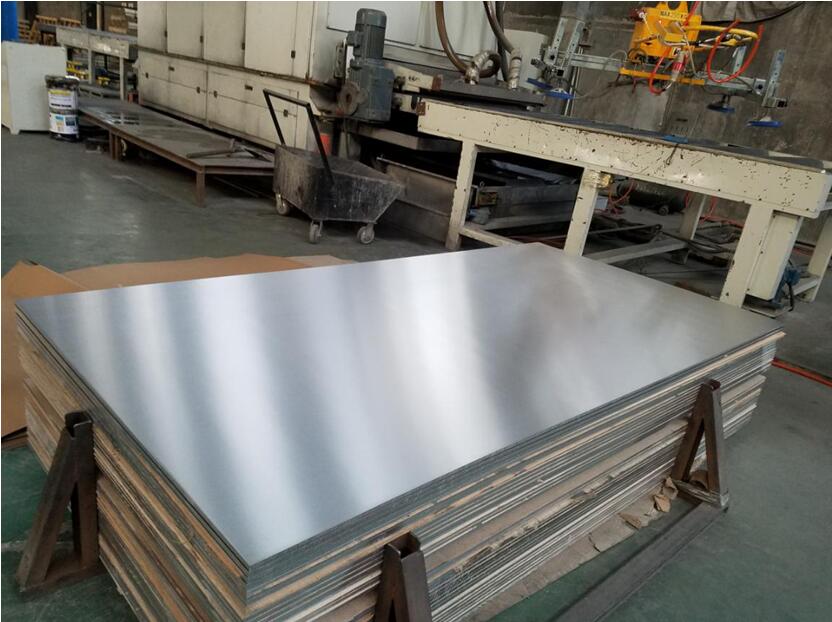

2195 luminum lithium plate sheet is a light-weight, high-strength and corrosion-resistant metal structure material. It has a very broad application prospect in the aviation and aerospace fields. For every 1% of lithium added to the alloy, the density is reduced by 3%. Using aluminum-lithium alloy instead of the conventional aviation aluminum alloy can reduce the structural quality by 5%~15%, and the elastic modulus Increased by 10~16%, and increased rigidity by 15%~20%, to achieve lightweight aviation, aerospace weapons and equipment, to meet the development needs of its high-precision, ultra-long-range, ultra-high-speed strike. Features of
2195 aluminum lithium plate sheet: * Low density, for every 1% of lithium added, the density is reduced by 3%, the carrier is reduced by 1kg, and the launch cost is saved by about 20,000 US dollars * High specific modulus and high specific strength, replacing conventional high-strength aluminum alloy can reduce the structural quality by 10%-20%, increase the elastic modulus by 6%, and increase the rigidity by 15%-20% * Excellent corrosion resistance * Good thermal conductivity and electrical conductivity Good processing and formability (suitable for laser beam welding, friction stir welding, aging forming)
Physical property of
2195 aluminum lithium plate sheet:
|
Alloy |
Density ρ/g cm-3 |
Tension strength Rm/MPa |
Yield strength Rpo2/Mpa |
Elongation A/% |
Fracture toughness
KⅠC/MPa |
Elastic Modulus
E/GPa |
|
2195 |
2.72 |
552 |
517 |
5.0 |
31 |
76.0 |
Application of
2195 aluminum lithium plate sheet
|
Alloy |
Type |
Application |
|
2195 |
Thick plates, thin plates, profiles, forgings
|
High-strength and high-elasticity weldable aluminum-lithium alloy, with excellent low temperature performance, the density of the alloy is 5% lighter than that of 2219 alloy, and its strength is 30% higher than the latter, which can replace 2219 alloy for aerospace cryogenic tank materials To achieve significant weight loss. |
Dimension of 2195 aluminum lithium plate sheet:
|
Dimension |
Al-Li alloy size specifications
|
|
Size |
Round casting ingot, plate ingot
|
Ф60mm×350mm，Ф90mm×350mm，Ф240mm×400mm，Ф400mm×800mm，800mm×600mm×200mm etc. |
Squeeze stick
|
Φ9.5mm，φ12mm，φ26mm，φ30mm，Φ60mm，φ100mm etc. |
Forged plate
|
55mm×400mm×600mm，80mm×400mm×500mm，110mm×350mm×400mm etc. |
Forged rod
|
Ф30mm-Ф400mm |
Rolled sheet
|
（0.5-45mm）thickness ×1200mm width |
